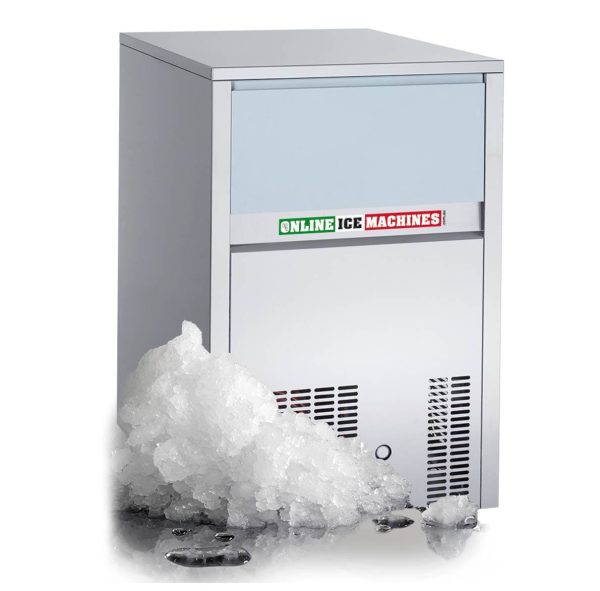

Self Contained Granular Ice Flakers EG 140/25

Description

Self Contained Granular Ice Flakers EG 140/25 produce ice at a temperature of -0.5°C. The ice is already crushed and ready to be used. Ideal for quick refrigeration of bottles and cocktails and for display or transportation of fish, meat and vegetables. Also suitable for supermarkets, hospitals, bakeries and laboratories.

This range of ice makers produces between 100kg and 140kg each 24 hours, with a storage capacity of 15 – 60kg. All models come with stainless steel bodywork and have ice level and water level sensors.

Check out Online Ice Machines other popular products

	Width	Depth	Height	Leg
	A	B	C	D
KS 100/15	500	670	696	40/50
KS 140/25	500	670	796	40/50
KS 140/60	740	700	934	40/50

Water Inlet

L	H	Ø
162	188	3/4”
162	188	3/4”
155	180	3/4”

Water Drain

L	H	Ø
102	118	24
102	118	24
93.6	85	24

Cooling System	Air / Water Cooled
Ice Production in 24 Hours (kg)	100 Kg, 140 kg
Storage Capacity (kg)	15 Kg, 25Kg, 60 Kg
Voltage Standard	230 V ~ 50 Hz
Power Consumption	700 W
Type of Refrigerant	R 452 A
Dimensions (W x D x H)	500 x 670 x 696 mm, 500 x 670 x 796 mm, 740 x 700 x 934 mm
Legs	40 – 50 mm, 40 – 50 mm, 40 – 50 mm
Net Weight	58 kg, 60 kg, 70 kg
Packing Dimensions	580 x 750 x 850 mm, 580 x 750 x 950 mm, 810 x 790 x 1072 mm
Gross Weight	65,5 kg, 67,5 kg, 78 kg

Width

Depth

Height

Leg

KS 100/15

500

670

696

40/50

KS 140/25

500

670

796

40/50

KS 140/60

740

700

934

40/50

	EG 100/15	EG 140/25	EG 140/60
Cooling System	Air / Water Cooled	Air / Water Cooled	Air / Water Cooled
Ice Production in 24 Hours (kg)	100 Kg	140 Kg	140 Kg
Storage Capacity (kg)	15 Kg	25 Kg	60 Kg
Voltage Standard	230 V ~ 50 Hz	230 V ~ 50 Hz	230 V ~ 50 Hz
Power Consumption	700 W	700 W	700 W
Type of Refrigerant	R 452 A	R 452 A	R 452 A
Dimensions (W x D x H)	500 x 670 x 696 mm	500 x 670 x 796 mm	500 x 670 x 934 mm
Legs	40 – 50 mm	40 – 50 mm	40 – 50 mm
Net Weight	58 kg	60 kg	70 kg
Packing Dimensions	580 x 750 x 850 mm	580 x 750 x 950 mm	810 x 790 x 1072 mm
Gross Weight	65,5 kg	67,5 kg	78 kg

EG 100/15

EG 140/25

EG 140/60

Cooling System

Air / Water Cooled

Ice Production in 24 Hours (kg)

100 Kg

140 Kg

Storage Capacity (kg)

15 Kg

25 Kg

60 Kg

Voltage Standard

230 V ~ 50 Hz

Power Consumption

700 W

Type of Refrigerant

R 452 A

Dimensions (W x D x H)

500 x 670 x 696 mm

500 x 670 x 796 mm

500 x 670 x 934 mm

Legs

40 – 50 mm

Net Weight

58 kg

60 kg

70 kg

Packing Dimensions

580 x 750 x 850 mm

580 x 750 x 950 mm

810 x 790 x 1072 mm

Gross Weight

65,5 kg

67,5 kg

78 kg

1800 842 188
